19/0.15mm 600V PTFE Insulated Bare Copper Wire with High Temperature Resistance -60℃~+200℃
Premium Products
19/0.15mm 600V PTFE Insulated Bare Copper Wire with High Temperature Resistance -60℃~+200℃
1
2
3
4
5
6
Model Number :AFR-200
Brand Name :Sanco Cable
Place of Origin :Hunan, China
MOQ :500
Conductor Material :Copper
Insulation Material :PTFE
Rated voltage :AC600V or Below
Conductor Type :Stranded or Solid
Working Temperature :-60℃~+200℃
Wire Gauge :19/0.15mm
Cross-section area :0.05~4mm2
Max.OD :1.95mm (for 1mm2)
Reference weight :10.9kg/km (for 1mm2)
Core Number :Single Core or Multiple Cores
Color Options :White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
Flame-retardant :Yes
Oil-resistance :Yes
Acid-resistance :Strong
Alkali-resistance :Strong
Contact Now
19/0.15mm High Temperature PTFE Insulated Bare Copper Wire
Product Description
PTFE wrapping wire is a type of electrical wire that is insulated with polytetrafluoroethylene (PTFE), a high-performance synthetic fluoropolymer. PTFE has excellent thermal and chemical resistance properties, making it suitable for demanding applications such as aerospace, medical devices, and electronics. The PTFE insulation provides protection against heat, moisture, and chemicals, and the wire's flexibility allows for easy handling and installation. PTFE wrapping wire is commonly used in applications where reliability and performance are critical.
Product Features: Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage.

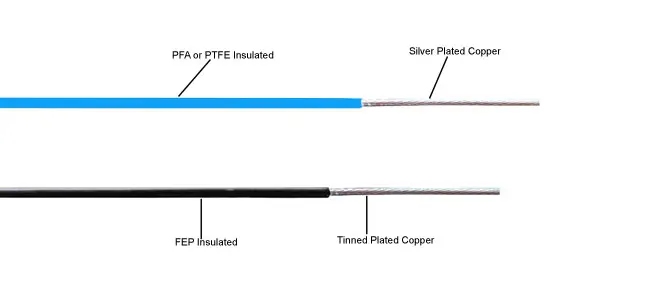

Bare Copper wire conductor PTFE film insulated lead wire
AFR-250
Silver plated copper wire conductor PTFE film insulated lead wire
AFP
Bare Copper wire conductor PTFE film insulated screen lead wire
AFP-1
Silver plated copper wire conductor PTFE film insulated screen lead wire
AFRP-200
Bare Copper wire conductor PTFE film insulation shield lead wire
AFRP-250
Silver plated wire copper conductor PTFE film insulation shield lead wire
AFRPF-250, AFPF
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire
Cable Structure:
Wire Gauge
Cross-section
area
Conductor
structure
Max.OD of wire mm
Reference weight kg/km
AF
AFP
AFPF
AF
AFP
AFPF
AF-1
AFP-1
AFRPF-200
AF-1
AFP-1
AFRPF-200
AFR-200
AFRP-200
AFRPF-250
AFR-200
AFRP-200
AFRPF-250
AWG
mm2
mm
AFR-250
AFRP-250
AFR-250
AFRP-250
36AWG
0.013
7/0.05
0.57
0.97
1.45
0.44
1.89
2.93
32AWG
0.035
7/0.08
0.67
1.15
1.55
0.73
2.39
3.52
-
0.05
10/0.08
0.72
1.28
1.68
0.91
2.67
3.85
-
0.07
14/0.08
0.75
1.3
1.7
1.16
3.05
4.29
-
0.1
21/0.08
0.85
1.4
1.8
1.57
3.63
4.95
26AWG
0.12
24/0.08
0.85
1.5
1.9
1.66
4.18
5.45
-
0.14/0.15
30/0.08
0.9
1.55
1.95
2.07
4.32
5.72
24AWG
0.2
42/0.08
1
1.65
2
2.72
5.17
6.67
-
0.25
56/0.08
1.1
1.7
2.05
3.47
6.13
7.73
22AWG
0.3
62/0.08
1.18
1.75
2.25
4.2
7.55
9.3
-
0.35
75/0.08
1.2
1.8
2.35
4.7
7.74
10.2
20AWG
0.5
63/0.1
1.45
2.05
2.4
5.36
8.54
11
-
0.75/0.80
91/0.1
1.69
2.39
/
8.19
11.9
/
18AWG
1
56/0.15
1.95
2.5
/
10.9
15.2
/
Noted:Extruded ptfe cable core No. and specification are not limited to the above regulation,they could be customized.

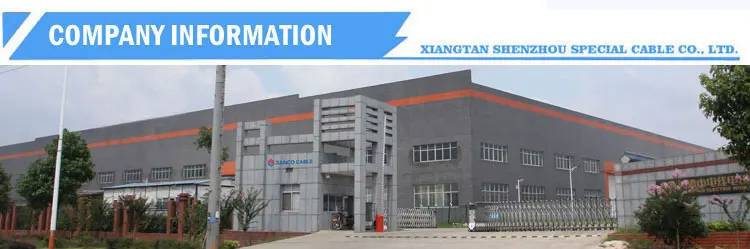

Company Informations

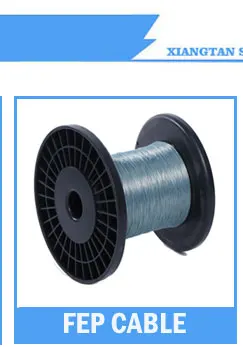

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE Wire, FEP Wire, PFA Wire, ETFE Wire, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.
Product Flow
EXHIBITION & VISIT
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India... Also Delegation from Ezeagu Government of Nigeria Visited our factory in 2017, and they became a long time partner with us.
WHY CHOOSE US
PACKING & SHIPPING
FAQ
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
5).Q:How can I get the samples?
A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
